1/10 R/C BLITZER BEETLE (2011) / NO ESC

Backyard Blitzer

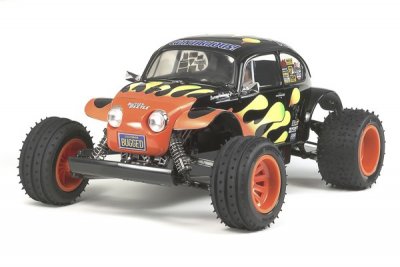

This is a 1/10 scale R/C assembly kit of the Blitzer Beetle, which was inspired by the exciting off-road desert racer designs seen in the United States. The proven chassis is equipped with 4-wheel double wishbone suspension, CVA shock units, and high-grip off-road tires to offer superb driving performance on rough terrain.

The injection-molded body features metal-plated light covers and side mirror parts for greater realism. In addition, a driver figure as well as a sticker sheet to depict the fiery splash-pattern livery are also included.

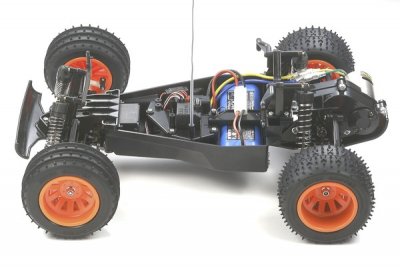

Superb 2WD Off-Road Chassis

This tough, lightweight ABS bathtub chassis features a rear-mounted motor, rear-wheel drive layout. Fully-enclosed gearbox protects against dirt and debris and is equipped with differential gears to offer smooth cornering. 4-wheel independent double wishbone suspension is equipped with C.V.A. shock units and extremely durable monocoque-type lower arms.

The front spiked tires feature three ribs for enhanced stability while the rear tires feature both spikes and an X-shaped tread pattern along the center to ensure high levels of grip.

Specifications

• Length: 394mm, Width: 295mm, Height: 182mm
• Wheelbase: 260mm
• Tread: 248mm (Front), 242mm (Rear)
• Tire Width/Diameter: 45/98mm (Front), 52/99mm (Rear)
• ABS Bathtub Type Chassis Frame
• Injection-Molded Body with Driver Torso Figure
• Rear-Mounted Motor, Rear-Wheel Drive
• 3-Bevel Differential Gears
• F/R Double Wishbone Suspension
• F/R CVA Shock Units
• Gear Ratio= 1:10.00
• Requires Electronic Speed Controller (sold separately)
• Type 540 Motor included

Please note, this version is without Radio and ESC, we recommend the RC set and ESC from Mstyle.
