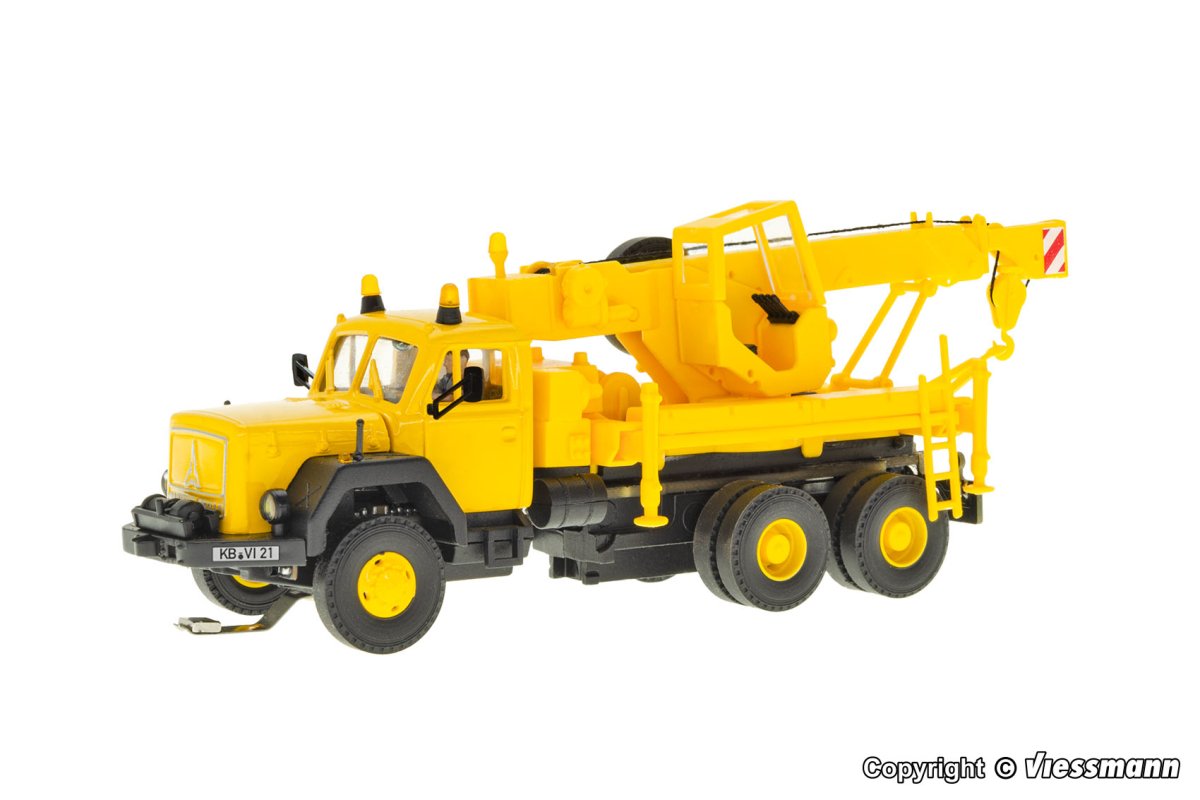

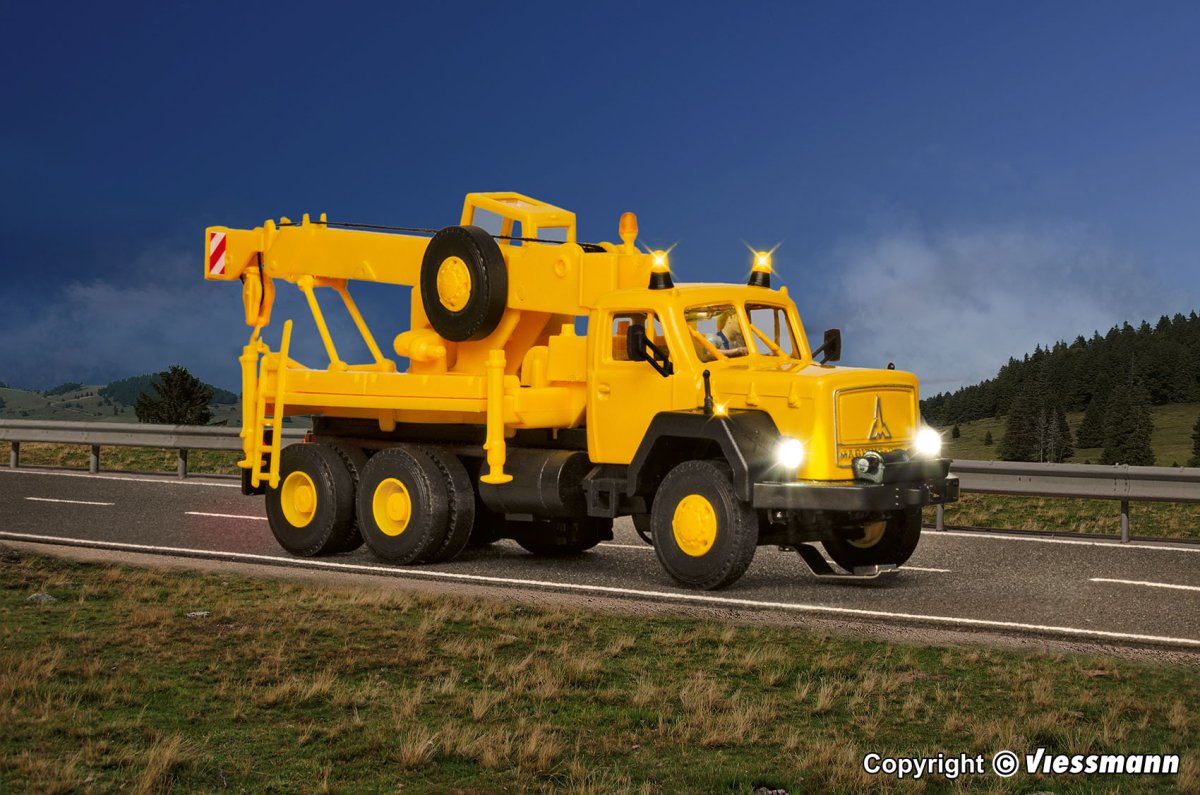

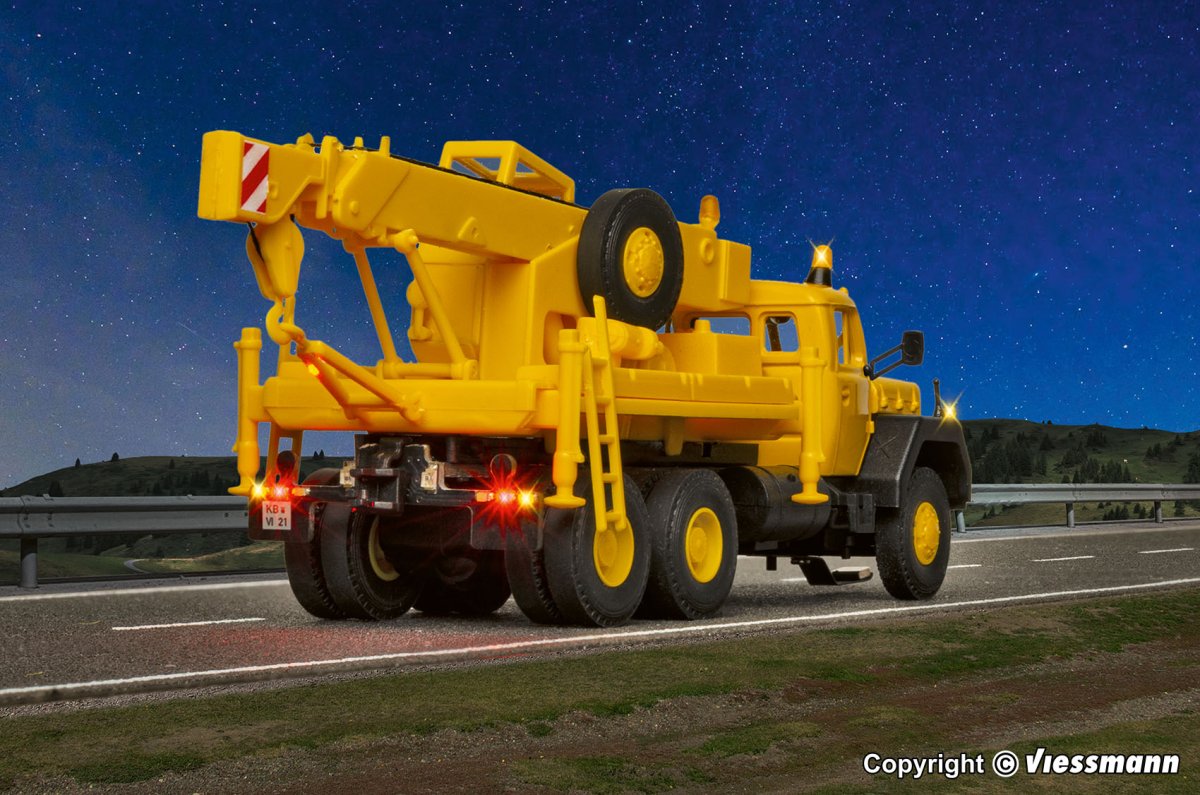

8021 H0 MAGIRUS DEUTZ 3-axle recovery crane with rotating flashi

Like all models of the CarMotion series, the vehicle comes with the following functions:

- Charging and programming connection

- Short charging times due to modern lithium polymer batteries

- With a full battery and normal operation with waiting times and various speeds a runtime of approx. 4 – 6 hours, and approx. 2 hours at max. speed/full load is possible.

- Easy on/off switching via a reed contact under the cab‘s roof with magnetic pointing stick or telescopic magnetic bar, item 8410

- Infrared transmitter/receiver for distance control (limited compatibility with other IR systems)

- Realistic braking resp. accelerating action and configurable speed due to speed-controlled motor

- Free cargo area due to underfloor drive unit

- Cabin lighting

- Braking and reversing lights

- Direction indicators right/left and warning lights controllable

- Low beam / high beam light

- Roof beacons (depending on type of vehicle)

- Clear seethrough driver‘s cab with figure

- 5-pole plug-in coupling for the connection of CarMotion trailers or semitrailers

- Compatible with existing systems with contact wire or magnetic tape

- Control by infrared light (IR), permanent magnets item 8431 in the road, electromagnetic stop coils and remote control item 8402

- Even without mechanical guidance a short straight line reverse is possible via steering by the remote control

Prototype data: MAGIRUS DEUTZ type 230 D 26 AK KHD Jupiter FlKfz 3-axle, wheelbase 3850 / 1380 mm, ZF six-speed constant-mesh gearbox, AK 6-80 four-stroke V8 Diesel motor type F8L914, performance 169 kW/230 HP, BILSTEIN recovery crane K 12500 H, fully hydraulic, max. payload 12 t, lifting height ca. 11 m.

L 11 – 18 x W 3.2 – 4.3 x H 3.9 – 11.5 cm
