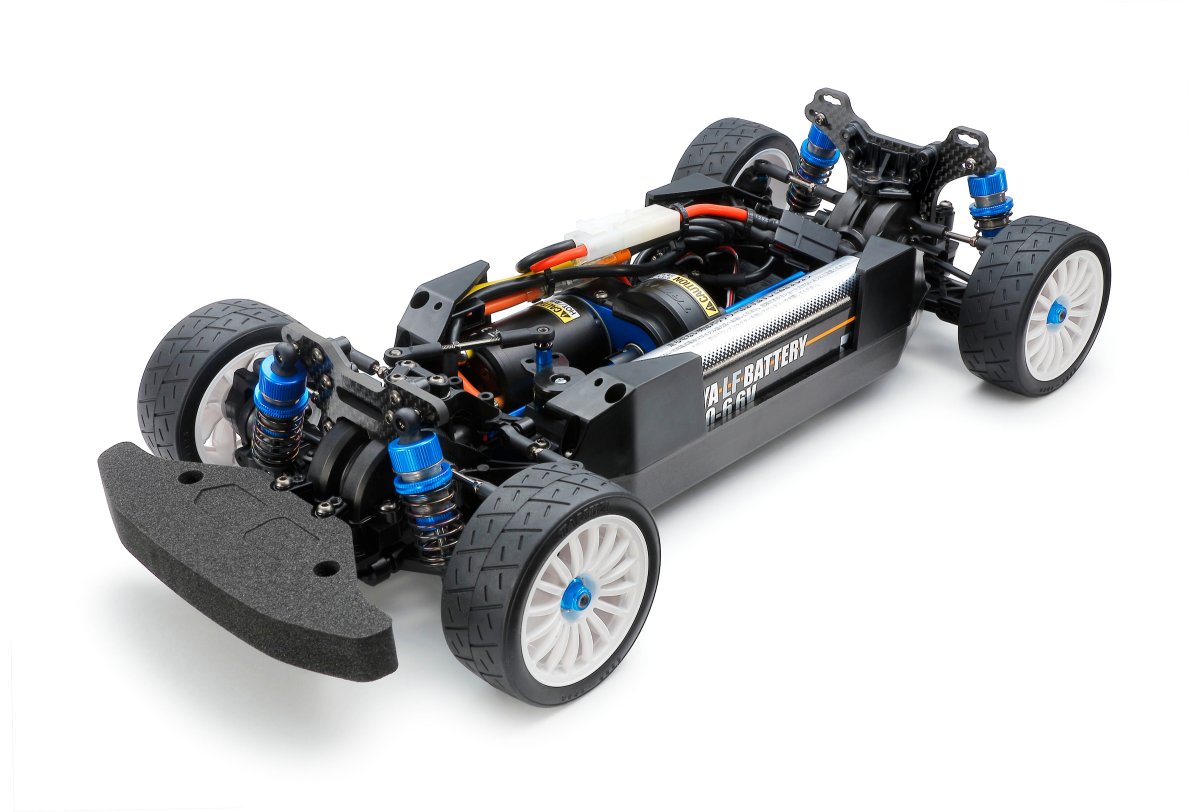

1/10 R/C XV-02RS PRO Chassis Kit
Tamiya is delighted to announce this shaft-driven 4WD touring chassis kit - based upon Item 58707 XV-02 PRO Chassis Kit – in the XV chassis series; this time the kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower deck.
About the Model
• This is a 1/10 scale R/C chassis assembly kit.
• Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower deck.
• 18-spoke wheels are paired with racing semi-slick tires.
• Equipped with front midship motor plus identical length front and rear long propeller shafts.
• Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
• Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.
• A longitudinal battery pack is positioned in the center-left for optimum balance.
• The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact.
• Caster blocks feature an angle of six degrees.
• Includes front and rear universal drive shafts, and an aluminum servo mount.
• Please note that a polycarbonate chassis cover is not included this time.
Please note, this version is without Radio and ESC, we recommend the RC set and ESC from Mstyle.
