SVÅRIGHETSGRAD 3/5

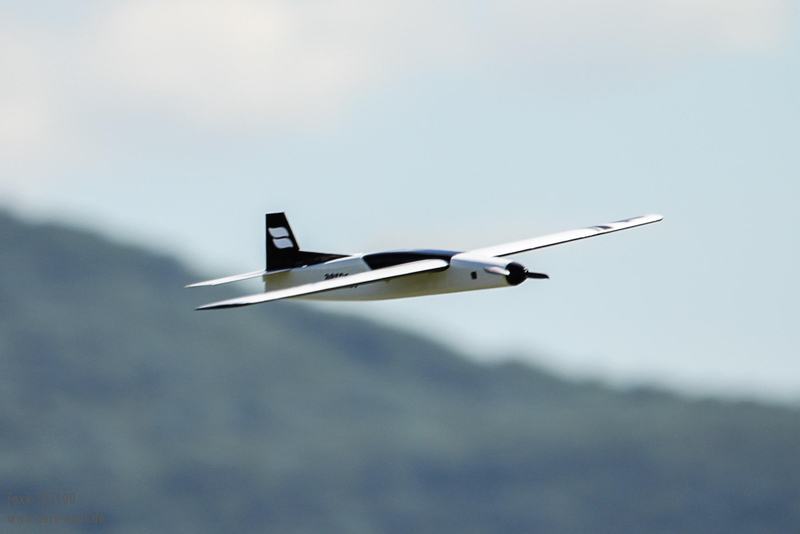

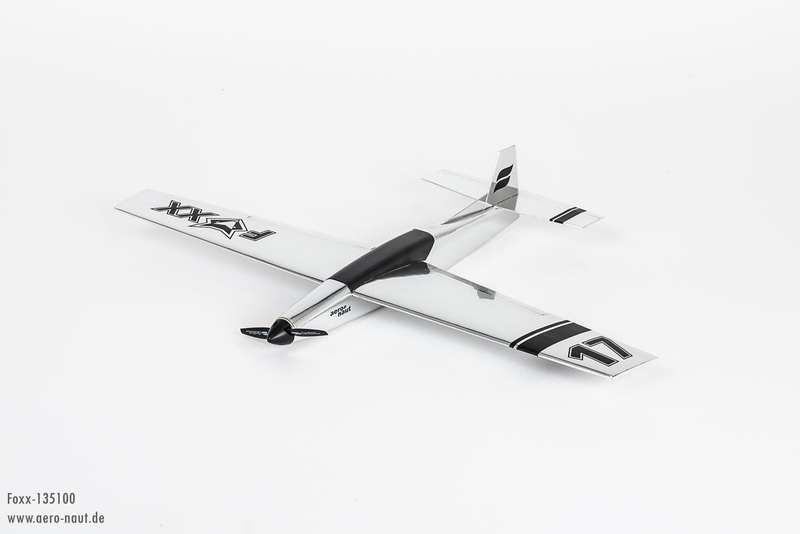

The rush for speed has always driven many model pilots. Combined with a very low weight and a powerful engine, flight performance is possible today that was only dreamed of a few years ago. Our FOXX is a high-performance model for speed flight. Completely made of balsa wood, a very high flight performance is achieved with minimal weight. Due to the high speed, this model is suitable for more experienced pilots. The construction of the model is made of lasered wooden parts, mainly balsa wood and reinforcements made of pine spars. FOXX is controlled by two ailerons and two elevators. Internal rotors with a high speed and a diameter of up to 28mm can be used as motors. Due to the simple structure, the completion of the model in one weekend is quite feasible. The construction technology is based on the well-known construction method that aero-naut already uses in many models. Conclusively dovetailed components and the use of a slipway ensure quick and precise construction success. The model kit contains all the components for building the wooden model, linkage parts, Bowden cable and detailed 3D assembly instructions.
Recommended drive
- Internal rotor motor Ø28 mm, approx. 2500 kV
- Actrocon 60 controller Order no. 7003/34
- Servo 1 x AN-12-MGBBA Order no. 7003/74
- Servo 2 x AN-10L-MGBBD Order no. 7003/73
- Spinner 38 mm Order no. 7258/01-05
- Propeller coupling depending on the motor shaft Ø
Motor shaft 3.0 mm Order no. 7124/38
motor shaft 3.2 mm part no. 7124/08
motor shaft 4.0 mm part no. 7124/11 - 3S LiPo, 2,000 mAh
- Propeller approx. 5 - 6 "diameter (please compare recommendations with the information from the engine manufacturer)
| Span [mm] | 900 |
| length [mm] | 645 |
| Weight [g] | 600 |
| Wing area [dm²] | 12 |
