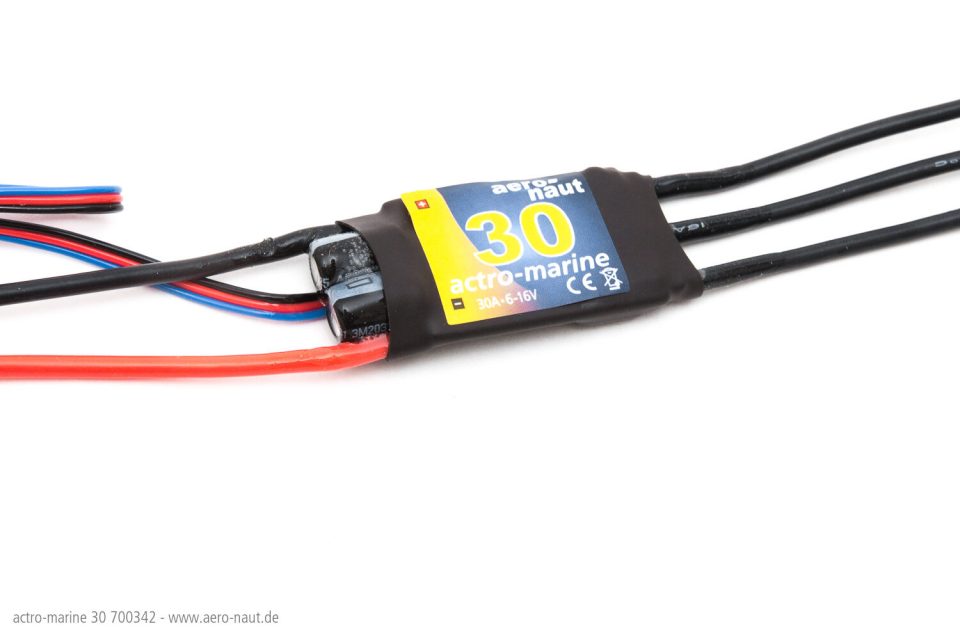

The actro-marine controllers set new standards for ship model builders. Matched to the actro-n motors, the controllers offer the perfect drive train for your boat. With extensive programming options, these controllers can be used for all types of boats and are also suitable for racing boats. With the extraordinarily high values for the BEC supply, a wide variety of ship structures are brought to life - without having to connect a separate power source for this.
The controller is delivered ready-soldered with plugs. Motor: 3.5mm gold connector, battery XT-60 connector.
The controllers are already programmed so that no further adjustments are necessary for most boat applications. If individual parameters are changed, the optionally available actro-marine setup box (order no. 7003/40) is required.
| controller | actro-marine 30 |
| Order no. | 7003/42 |
| operating voltage | 2-4 LiPo |
| continuous current | 30A |
| Max current momentary | 40A |
| BEC voltage | 5.5V |
| BEC current | 4 A |
| dimensions approx. | 49x24x9mm |
| Weight with cable + plug approx. | 31g |
| water cooling | no |
